Violin-playing Robot

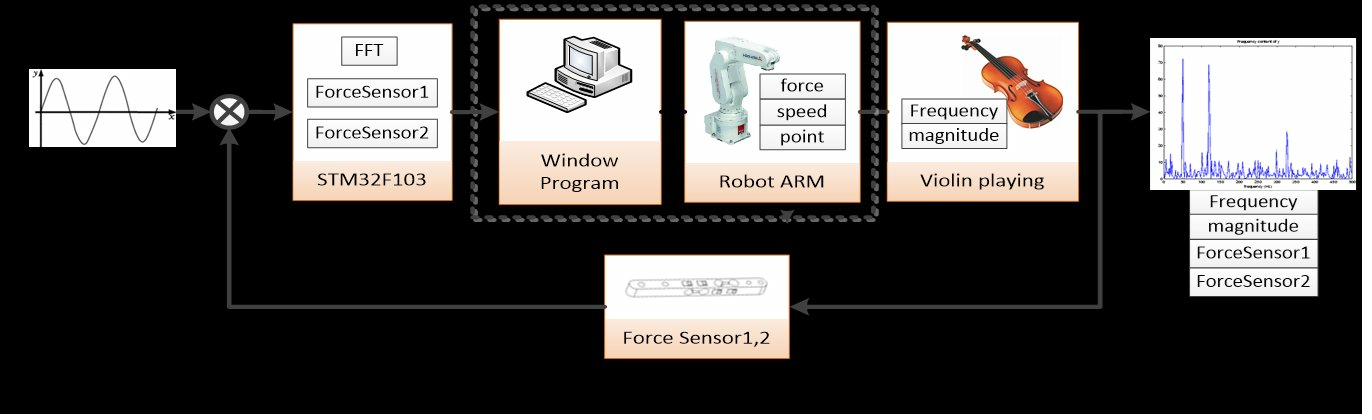

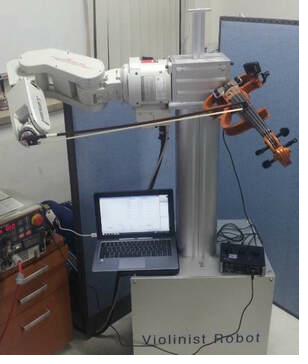

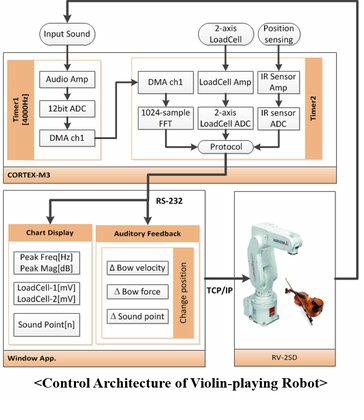

To play a violin, the bow is attached at the end-effector of the robot arm. The two-axis load cell is mounted on the bow handle to measure the horizontal and vertical force. The violin is fixed to the robot body. For an accurate analysis of the played sound, an electrical violin that is resistant to external noise is used. The system employs auditory feedback to improve sound quality and achieve precise bowing control.
